Inorganic Material Business
We handle the entire production process of our in-house silica sand, from raw material to finished product.
Aiming for High Quality and High Added Value

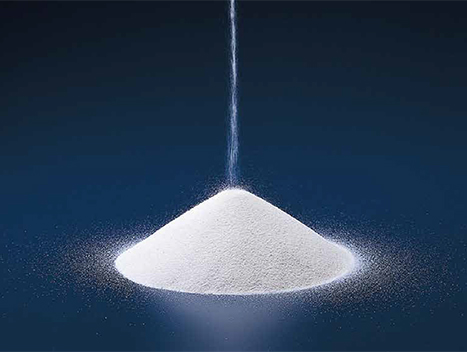

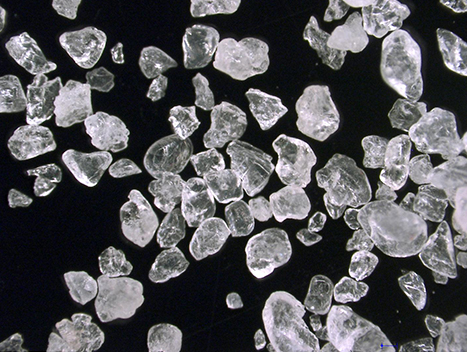

Silica sand has long been used as a fundamental material due to its global abundance. We provide safe, reliable, and high-quality sand that meets the diverse needs of today's strict legal and regulatory environments. Our sand is produced in clean, controlled conditions to ensure consistent quality and performance.
We offer products with low metallic impurities, excellent fluidity, and support for small-lot production.
Spherical Materials (Spherical Silica, Fused Silica, Amorphous Silica, Spherical Glass, Glass Bead)
We offer not only spherical silica made from high-purity Australian silica sand, but also various inorganic spherical fillers, including glass-based materials. Spherical silica is highly suitable as a filler due to its excellent heat resistance and smooth dispersibility, making it ideal for applications such as pastes and encapsulants. We precisely control particle size distribution and specific surface area to meet the diverse requirements of our customers.

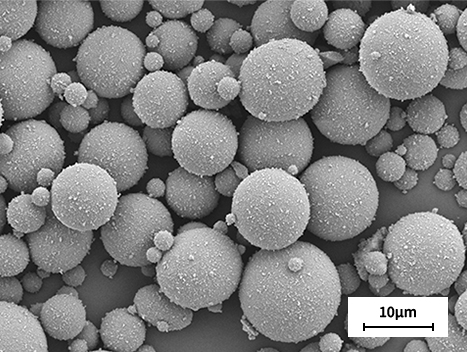

Micron-sized products 10μm

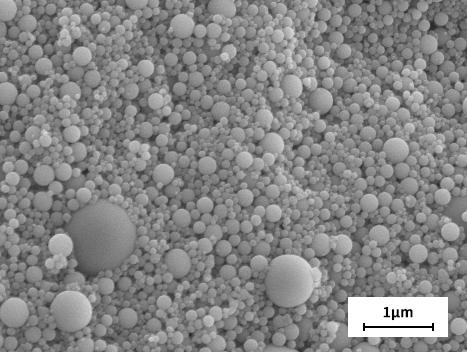

Submicron-sized products 1μm
Spherical Silica Product Specifications
| Grade of Spherical Silica |
D50 (μm) |
SSA (m²/g) |
EC (μS/cm) |
Composition | |||
|---|---|---|---|---|---|---|---|
| SiO₂ (%) | Al₂O₃ (%) | Na⁺ (ppm) | Cl⁻ (ppm) | ||||
| 75μm cut | 18.0 | 1.9 | < 10 | > 99.0 | < 1.0 | < 10.0 | < 5.0 |
| 53μm cut | 14.2 | 3.5 | |||||
| 45μm cut | 8.9 | 3.4 | |||||
| 32μm cut | 5.0 | 4.7 | |||||
| 20μm cut | 4.8 | 4.7 | |||||
| 10μm cut | 4.4 | 5.7 | |||||
| 5μm cut | 1.7 | 12.0 | |||||
Remark: The above values are typical examples for each grade
Spherical Materials - Examples of Use and Properties
| Spherical Glass | Example of Uses | Refractive Index | Density (g/cm³) |
Circularity | Linear thermal expansion coefficient (×10⁻⁶/℃) |
Relative Permittivity @1 MHz |
|---|---|---|---|---|---|---|
| Spherical Sample 1 | Dental Materials | 1.53 | 2.8 | 0.92 | 4.3 | 5.5 |
| Spherical Sample 2 | 1.88 | 4.2 | 0.92 | 9.0 | 14.0 |
Remark: The above values are typical examples for each material
We support particle size distribution control, surface treatment, and small-lot production.

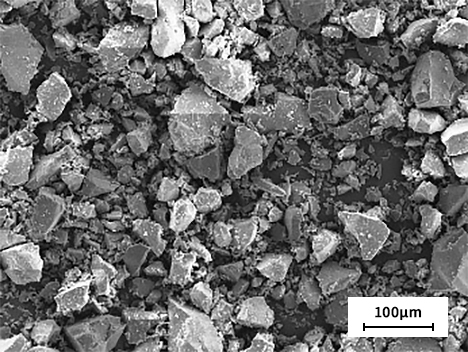

Grinding Products (Silica Powder, Silica Flour, Crystalline Silica)

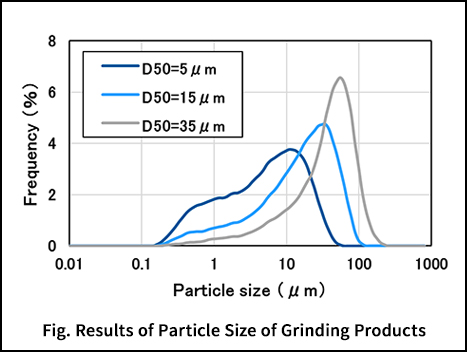

We offer Grinding Products made from high-purity Australian silica sand, suitable for use in encapsulants, paints, and friction materials. In addition to silica sand, we also pulverize a variety of glass materials. We provide particle size distribution control and a range of surface treatments to meet our customers' specific needs.
Grinding Products Specifications
| Grinding Products (Example) |
Example of Uses | D50 μm |
Composition | ||||
|---|---|---|---|---|---|---|---|
| SiO₂ % | Al₂O₃ % | Fe₂O₃ % | RO % | RO₂ % | |||
| Albany Silica Sand Powder | Paints | 3～50 | > 99.0 | < 1.0 | < 0.01 | < 0.01 | < 0.01 |
| Abrasives | |||||||
| casting investments | |||||||
Remark: The above values are typical examples for each product
Group company member
YTF Co.,Ltd.
111, Nishimukojimacho, Amagasaki-shi, Hyogo, Japan
Post Code 660-0857
TEL: +81-6-6411-3160 FAX: +81-6-6411-3163
Established as a company: July 25, 2018
Present capital: 100 million yen
Scope of operations: Production and sale of spherical silica, ceramic and glass powders
ISO9001: Certification acquired in 2015
